Main schema File_Object.xsd
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

This schema was originally developed by The MITRE Corporation. The CybOX XML Schema implementation is maintained by The MITRE Corporation and developed by the open CybOX Community. For more information, including how to get involved in the effort and how to submit change requests, please visit the CybOX website at http://cybox.mitre.org.
Element FileObj:File
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The File object is intended to characterize a generic file.
Diagram
Diagram File_Object_xsd.tmp#FileObjectType_is_packed File_Object_xsd.tmp#FileObjectType_is_masqueraded File_Object_xsd.tmp#FileObjectType_File_Name File_Object_xsd.tmp#FileObjectType_File_Path File_Object_xsd.tmp#FileObjectType_Device_Path File_Object_xsd.tmp#FileObjectType_Full_Path File_Object_xsd.tmp#FileObjectType_File_Extension File_Object_xsd.tmp#FileObjectType_Size_In_Bytes File_Object_xsd.tmp#FileObjectType_Magic_Number File_Object_xsd.tmp#FileObjectType_File_Format File_Object_xsd.tmp#FileObjectType_Hashes File_Object_xsd.tmp#FileObjectType_Digital_Signatures File_Object_xsd.tmp#FileObjectType_Modified_Time File_Object_xsd.tmp#FileObjectType_Accessed_Time File_Object_xsd.tmp#FileObjectType_Created_Time File_Object_xsd.tmp#FileObjectType_File_Attributes_List File_Object_xsd.tmp#FileObjectType_Permissions File_Object_xsd.tmp#FileObjectType_User_Owner File_Object_xsd.tmp#FileObjectType_Packer_List File_Object_xsd.tmp#FileObjectType_Peak_Entropy File_Object_xsd.tmp#FileObjectType_Sym_Links File_Object_xsd.tmp#FileObjectType_Byte_Runs File_Object_xsd.tmp#FileObjectType_Extracted_Features File_Object_xsd.tmp#FileObjectType_Encryption_Algorithm File_Object_xsd.tmp#FileObjectType_Decryption_Key File_Object_xsd.tmp#FileObjectType_Compression_Method File_Object_xsd.tmp#FileObjectType_Compression_Version File_Object_xsd.tmp#FileObjectType_Compression_Comment File_Object_xsd.tmp#FileObjectType
Type FileObj:FileObjectType
Type hierarchy
Children FileObj:Accessed_Time, FileObj:Byte_Runs, FileObj:Compression_Comment, FileObj:Compression_Method, FileObj:Compression_Version, FileObj:Created_Time, FileObj:Decryption_Key, FileObj:Device_Path, FileObj:Digital_Signatures, FileObj:Encryption_Algorithm, FileObj:Extracted_Features, FileObj:File_Attributes_List, FileObj:File_Extension, FileObj:File_Format, FileObj:File_Name, FileObj:File_Path, FileObj:Full_Path, FileObj:Hashes, FileObj:Magic_Number, FileObj:Modified_Time, FileObj:Packer_List, FileObj:Peak_Entropy, FileObj:Permissions, FileObj:Size_In_Bytes, FileObj:Sym_Links, FileObj:User_Owner
Source

<xs:element name="File" type="FileObj:FileObjectType">
  <xs:annotation>
    <xs:documentation>The File object is intended to characterize a generic file.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:File_Name
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The File_Name field specifies the base name of the file (including an extension, if present).
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="File_Name" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The File_Name field specifies the base name of the file (including an extension, if present).</xs:documentation>
  </xs:annotation>
</xs:element>

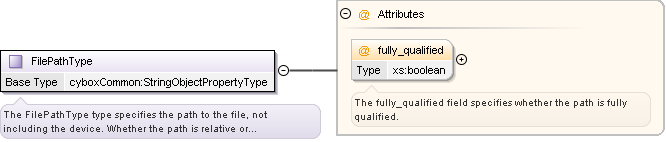

Element FileObj:FileObjectType / FileObj:File_Path
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The File_Path field specifies the relative or fully-qualified path to the file, not including the path to the device where the file system containing the file resides. Whether the path is relative or fully-qualified can be specified via the 'fully_qualified' attribute of this field. The File_Path field may include the name of the file; if so, it must not conflict with the File_Name field. If not, the File_Path field should contain the path of the directory containing the file, and should end with a terminating path separator("\" or "/").
Diagram
Diagram File_Object_xsd.tmp#FilePathType_fully_qualified File_Object_xsd.tmp#FilePathType
Type FileObj:FilePathType
Type hierarchy
Source

<xs:element name="File_Path" type="FileObj:FilePathType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The File_Path field specifies the relative or fully-qualified path to the file, not including the path to the device where the file system containing the file resides. Whether the path is relative or fully-qualified can be specified via the 'fully_qualified' attribute of this field. The File_Path field may include the name of the file; if so, it must not conflict with the File_Name field. If not, the File_Path field should contain the path of the directory containing the file, and should end with a terminating path separator("\" or "/").</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Device_Path
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Device_Path field specifies the path to the physical device where the file system containing the file resides.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="Device_Path" type="cyboxCommon:StringObjectPropertyType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Device_Path field specifies the path to the physical device where the file system containing the file resides.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Full_Path
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Full_Path field specifies the complete path to the file, including the device path. It should contain the contents that would otherwise be in the Device_Path and File_Path fields, and can be used in case the producer is unable or does not wish to separate the Device_Path and File_Path fields. If the Full_Path field is specified along with the File_Path and/or Device_Path fields, it must not conflict with either. The Full_Path field may include the name of the file; if so, it must not conflict with the File_Name field. If not, the File_Path field should contain the path of the directory containing the file, and should end with a terminating path separator("\" or "/").
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="Full_Path" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Full_Path field specifies the complete path to the file, including the device path. It should contain the contents that would otherwise be in the Device_Path and File_Path fields, and can be used in case the producer is unable or does not wish to separate the Device_Path and File_Path fields. If the Full_Path field is specified along with the File_Path and/or Device_Path fields, it must not conflict with either. The Full_Path field may include the name of the file; if so, it must not conflict with the File_Name field. If not, the File_Path field should contain the path of the directory containing the file, and should end with a terminating path separator("\" or "/").</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:File_Extension
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The File_Extension field specifies the extension of the name of the file. The File_Extension field must not conflict with the ending of the File_Name field. The File_Extension field should not begin with a "." character, but may contain a "." character in the case of a compound file extension, such as "tar.gz".
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="File_Extension" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The File_Extension field specifies the extension of the name of the file. The File_Extension field must not conflict with the ending of the File_Name field. The File_Extension field should not begin with a "." character, but may contain a "." character in the case of a compound file extension, such as "tar.gz".</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Size_In_Bytes
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Size_In_Bytes field specifies the size of the file, in bytes.
Diagram
Diagram
Type UnsignedLongObjectPropertyType
Source

<xs:element name="Size_In_Bytes" type="cyboxCommon:UnsignedLongObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Size_In_Bytes field specifies the size of the file, in bytes.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Magic_Number
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Magic_Number specifies the particular magic number (typically a hexadecimal constant used to identify a file format) corresponding to the file, if applicable.
Diagram
Diagram
Type HexBinaryObjectPropertyType
Source

<xs:element minOccurs="0" name="Magic_Number" type="cyboxCommon:HexBinaryObjectPropertyType">
  <xs:annotation>
    <xs:documentation>The Magic_Number specifies the particular magic number (typically a hexadecimal constant used to identify a file format) corresponding to the file, if applicable.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:File_Format
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The File_Format field specifies the particular file format of the file, most typically specified by a tool such as the UNIX file command.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element minOccurs="0" name="File_Format" type="cyboxCommon:StringObjectPropertyType">
  <xs:annotation>
    <xs:documentation>The File_Format field specifies the particular file format of the file, most typically specified by a tool such as the UNIX file command.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Hashes
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Hashes field specifies any hashes of the file.
Diagram
Diagram
Type HashListType
Source

<xs:element name="Hashes" type="cyboxCommon:HashListType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Hashes field specifies any hashes of the file.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Digital_Signatures
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Digital_Signatures field is optional and captures one or more digital signatures for the file.
Diagram
Diagram
Type DigitalSignaturesType
Source

<xs:element name="Digital_Signatures" type="cyboxCommon:DigitalSignaturesType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Digital_Signatures field is optional and captures one or more digital signatures for the file.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Modified_Time
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Modified_Time field specifies the date/time the file was last modified.
Diagram
Diagram
Type DateTimeObjectPropertyType
Source

<xs:element name="Modified_Time" type="cyboxCommon:DateTimeObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Modified_Time field specifies the date/time the file was last modified.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Accessed_Time
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Accessed_Time field specifies the date/time the file was last accessed.
Diagram
Diagram
Type DateTimeObjectPropertyType
Source

<xs:element name="Accessed_Time" type="cyboxCommon:DateTimeObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Accessed_Time field specifies the date/time the file was last accessed.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Created_Time
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Created_Time field specifies the date/time the file was created.
Diagram
Diagram
Type DateTimeObjectPropertyType
Source

<xs:element name="Created_Time" type="cyboxCommon:DateTimeObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Created_Time field specifies the date/time the file was created.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:File_Attributes_List
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The File_Attributes_List field specifies the particular special attributes set for the file. Since this is a platform-specific Object property, it is defined here as an abstract type and then implemented in any platform specific derived file objects.
Diagram
Diagram File_Object_xsd.tmp#FileAttributeType
Type FileObj:FileAttributeType
Source

<xs:element name="File_Attributes_List" type="FileObj:FileAttributeType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The File_Attributes_List field specifies the particular special attributes set for the file. Since this is a platform-specific Object property, it is defined here as an abstract type and then implemented in any platform specific derived file objects.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Permissions
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Permissions field specifies that particular permissions that a file may have. Since this is a platform-specific Object property, it is defined here as an abstract type and then implemented in any platform specific derived file objects.
Diagram
Diagram File_Object_xsd.tmp#FilePermissionsType
Type FileObj:FilePermissionsType
Source

<xs:element name="Permissions" type="FileObj:FilePermissionsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Permissions field specifies that particular permissions that a file may have. Since this is a platform-specific Object property, it is defined here as an abstract type and then implemented in any platform specific derived file objects.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:User_Owner
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The User_Owner field specifies the name of the user that owns the file.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="User_Owner" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The User_Owner field specifies the name of the user that owns the file.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Packer_List
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Packer_List field specifies any packers that the file may be packed with. The term 'packer' here refers to packers, as well as things like archivers and installers.
Diagram
Diagram File_Object_xsd.tmp#PackerListType_Packer File_Object_xsd.tmp#PackerListType
Type FileObj:PackerListType
Children FileObj:Packer
Source

<xs:element name="Packer_List" type="FileObj:PackerListType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Packer_List field specifies any packers that the file may be packed with. The term 'packer' here refers to packers, as well as things like archivers and installers.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:PackerListType / FileObj:Packer
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Packer field specifies a single file packer.
Diagram
Diagram File_Object_xsd.tmp#PackerType_Name File_Object_xsd.tmp#PackerType_Version File_Object_xsd.tmp#PackerType_Entry_Point File_Object_xsd.tmp#PackerType_Signature File_Object_xsd.tmp#PackerType_Type File_Object_xsd.tmp#PackerType_Detected_Entrypoint_Signatures File_Object_xsd.tmp#PackerType_EP_Jump_Codes File_Object_xsd.tmp#PackerType
Type FileObj:PackerType
Children FileObj:Detected_Entrypoint_Signatures, FileObj:EP_Jump_Codes, FileObj:Entry_Point, FileObj:Name, FileObj:Signature, FileObj:Type, FileObj:Version
Source

<xs:element name="Packer" type="FileObj:PackerType" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>The Packer field specifies a single file packer.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:PackerType / FileObj:Name
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Name field specifies the name of the packer.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="Name" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Name field specifies the name of the packer.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:PackerType / FileObj:Version
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Version field specifies the version of the packer.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="Version" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Version field specifies the version of the packer.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:PackerType / FileObj:Entry_Point
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Entry_Point field specifies the entry point address of the packer, if applicable.
Diagram
Diagram
Type HexBinaryObjectPropertyType
Source

<xs:element minOccurs="0" name="Entry_Point" type="cyboxCommon:HexBinaryObjectPropertyType">
  <xs:annotation>
    <xs:documentation>The Entry_Point field specifies the entry point address of the packer, if applicable.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:PackerType / FileObj:Signature
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Signature field specifies the matching signature detected for the packer, if applicable.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="Signature" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Signature field specifies the matching signature detected for the packer, if applicable.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:PackerType / FileObj:Type
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Type field specifies the type of packer being characterized.
Diagram
Diagram File_Object_xsd.tmp#PackerClassType_datatype File_Object_xsd.tmp#PackerClassType
Type FileObj:PackerClassType
Type hierarchy
Source

<xs:element name="Type" type="FileObj:PackerClassType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Type field specifies the type of packer being characterized.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:PackerType / FileObj:Detected_Entrypoint_Signatures
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Detected_Entrypoint_Signatures field specifies the entrypoint signatures that were detected for the packer.
Diagram
Diagram File_Object_xsd.tmp#EntryPointSignatureListType_Entry_Point_Signature File_Object_xsd.tmp#EntryPointSignatureListType
Type FileObj:EntryPointSignatureListType
Children FileObj:Entry_Point_Signature
Source

<xs:element maxOccurs="1" minOccurs="0" name="Detected_Entrypoint_Signatures" type="FileObj:EntryPointSignatureListType">
  <xs:annotation>
    <xs:documentation>The Detected_Entrypoint_Signatures field specifies the entrypoint signatures that were detected for the packer.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:EntryPointSignatureListType / FileObj:Entry_Point_Signature
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

Specifies a single field in a list of entry point signatures.
Diagram
Diagram File_Object_xsd.tmp#EntryPointSignatureType_Name File_Object_xsd.tmp#EntryPointSignatureType_Type File_Object_xsd.tmp#EntryPointSignatureType
Type FileObj:EntryPointSignatureType
Children FileObj:Name, FileObj:Type
Source

<xs:element maxOccurs="unbounded" name="Entry_Point_Signature" type="FileObj:EntryPointSignatureType">
  <xs:annotation>
    <xs:documentation>Specifies a single field in a list of entry point signatures.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:EntryPointSignatureType / FileObj:Name
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

Specifies the signature name.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element maxOccurs="1" minOccurs="0" name="Name" type="cyboxCommon:StringObjectPropertyType">
  <xs:annotation>
    <xs:documentation>Specifies the signature name.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:EntryPointSignatureType / FileObj:Type
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

Specifies the type of entry point detected (e.g., packer, compiled file).
Diagram
Diagram File_Object_xsd.tmp#DetectedTypeEnum
Type FileObj:DetectedTypeEnum
Facets
enumeration None
Specifies a type other than those listed.
enumeration Compiler
Specifies an executable that acts as a compiler.
enumeration Packer
Specifies an executable that acts as a packer.
enumeration Installer
Specifies an executable that acts as an installer.
Source

<xs:element maxOccurs="1" minOccurs="0" name="Type" type="FileObj:DetectedTypeEnum">
  <xs:annotation>
    <xs:documentation>Specifies the type of entry point detected (e.g., packer, compiled file).</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:PackerType / FileObj:EP_Jump_Codes
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The EP_Jump_Codes field characterizes the entry point jump codes of the packer.
Diagram
Diagram File_Object_xsd.tmp#EPJumpCodeType_Depth File_Object_xsd.tmp#EPJumpCodeType_Opcodes File_Object_xsd.tmp#EPJumpCodeType
Type FileObj:EPJumpCodeType
Children FileObj:Depth, FileObj:Opcodes
Source

<xs:element maxOccurs="1" minOccurs="0" name="EP_Jump_Codes" type="FileObj:EPJumpCodeType">
  <xs:annotation>
    <xs:documentation>The EP_Jump_Codes field characterizes the entry point jump codes of the packer.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:EPJumpCodeType / FileObj:Depth
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The frequency that a jump instruction is found to be immediately followed by another jump instruction within the PE(Portable Executable) entry point.
Diagram
Diagram
Type IntegerObjectPropertyType
Source

<xs:element maxOccurs="1" minOccurs="0" name="Depth" type="cyboxCommon:IntegerObjectPropertyType">
  <xs:annotation>
    <xs:documentation>The frequency that a jump instruction is found to be immediately followed by another jump instruction within the PE(Portable Executable) entry point.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:EPJumpCodeType / FileObj:Opcodes
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The hex value of the bytes located at the jump location for a relative jump identified in the PE(Portable Executable) entry point up to 10 bytes or the end of the RVA(Relative Virtual Address) section.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element maxOccurs="1" minOccurs="0" name="Opcodes" type="cyboxCommon:StringObjectPropertyType">
  <xs:annotation>
    <xs:documentation>The hex value of the bytes located at the jump location for a relative jump identified in the PE(Portable Executable) entry point up to 10 bytes or the end of the RVA(Relative Virtual Address) section.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Peak_Entropy
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Peak_Entropy field specifies the calculated peak entropy of the file.
Diagram
Diagram
Type DoubleObjectPropertyType
Source

<xs:element name="Peak_Entropy" type="cyboxCommon:DoubleObjectPropertyType" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The Peak_Entropy field specifies the calculated peak entropy of the file.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Sym_Links
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations
Diagram
Type FileObj:SymLinksListType
Children FileObj:Sym_Link
Source
Element FileObj:SymLinksListType / FileObj:Sym_Link
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations
Diagram
Type StringObjectPropertyType
Source
Element FileObj:FileObjectType / FileObj:Byte_Runs
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Byte_Runs field contains a list of byte runs from the raw file or its storage medium.
Diagram
Diagram
Type ByteRunsType
Source

<xs:element name="Byte_Runs" type="cyboxCommon:ByteRunsType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Byte_Runs field contains a list of byte runs from the raw file or its storage medium.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Extracted_Features
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

A description of features extracted from this file.
Diagram
Diagram
Type ExtractedFeaturesType
Source

<xs:element name="Extracted_Features" type="cyboxCommon:ExtractedFeaturesType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>A description of features extracted from this file.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Encryption_Algorithm
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Encryption_Algorithm field specifies the algorithm used to encrypt the file.
Diagram
Diagram
Type CipherType
Source

<xs:element name="Encryption_Algorithm" type="cyboxCommon:CipherType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Encryption_Algorithm field specifies the algorithm used to encrypt the file.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Decryption_Key
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Decryption_Key field specifies the key used to decrypt the file.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="Decryption_Key" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Decryption_Key field specifies the key used to decrypt the file.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Compression_Method
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Compression_Method field specifies the method used to compress the file.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="Compression_Method" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Compression_Method field specifies the method used to compress the file.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Compression_Version
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Compression_Version field specifies the version of the compression method used to compress the file.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="Compression_Version" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Compression_Version field specifies the version of the compression method used to compress the file.</xs:documentation>
  </xs:annotation>
</xs:element>
Element FileObj:FileObjectType / FileObj:Compression_Comment
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The Compression_Comment field specifies the comment string associated with the compressed file.
Diagram
Diagram
Type StringObjectPropertyType
Source

<xs:element name="Compression_Comment" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The Compression_Comment field specifies the comment string associated with the compressed file.</xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type FileObj:FileObjectType
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The File_ObjectType type is intended to characterize generic files.
Diagram
Diagram File_Object_xsd.tmp#FileObjectType_is_packed File_Object_xsd.tmp#FileObjectType_is_masqueraded File_Object_xsd.tmp#FileObjectType_File_Name File_Object_xsd.tmp#FileObjectType_File_Path File_Object_xsd.tmp#FileObjectType_Device_Path File_Object_xsd.tmp#FileObjectType_Full_Path File_Object_xsd.tmp#FileObjectType_File_Extension File_Object_xsd.tmp#FileObjectType_Size_In_Bytes File_Object_xsd.tmp#FileObjectType_Magic_Number File_Object_xsd.tmp#FileObjectType_File_Format File_Object_xsd.tmp#FileObjectType_Hashes File_Object_xsd.tmp#FileObjectType_Digital_Signatures File_Object_xsd.tmp#FileObjectType_Modified_Time File_Object_xsd.tmp#FileObjectType_Accessed_Time File_Object_xsd.tmp#FileObjectType_Created_Time File_Object_xsd.tmp#FileObjectType_File_Attributes_List File_Object_xsd.tmp#FileObjectType_Permissions File_Object_xsd.tmp#FileObjectType_User_Owner File_Object_xsd.tmp#FileObjectType_Packer_List File_Object_xsd.tmp#FileObjectType_Peak_Entropy File_Object_xsd.tmp#FileObjectType_Sym_Links File_Object_xsd.tmp#FileObjectType_Byte_Runs File_Object_xsd.tmp#FileObjectType_Extracted_Features File_Object_xsd.tmp#FileObjectType_Encryption_Algorithm File_Object_xsd.tmp#FileObjectType_Decryption_Key File_Object_xsd.tmp#FileObjectType_Compression_Method File_Object_xsd.tmp#FileObjectType_Compression_Version File_Object_xsd.tmp#FileObjectType_Compression_Comment
Type extension of ObjectPropertiesType
Type hierarchy
Used by
Element FileObj:File
Children FileObj:Accessed_Time, FileObj:Byte_Runs, FileObj:Compression_Comment, FileObj:Compression_Method, FileObj:Compression_Version, FileObj:Created_Time, FileObj:Decryption_Key, FileObj:Device_Path, FileObj:Digital_Signatures, FileObj:Encryption_Algorithm, FileObj:Extracted_Features, FileObj:File_Attributes_List, FileObj:File_Extension, FileObj:File_Format, FileObj:File_Name, FileObj:File_Path, FileObj:Full_Path, FileObj:Hashes, FileObj:Magic_Number, FileObj:Modified_Time, FileObj:Packer_List, FileObj:Peak_Entropy, FileObj:Permissions, FileObj:Size_In_Bytes, FileObj:Sym_Links, FileObj:User_Owner
Source

<xs:complexType name="FileObjectType" mixed="false">
  <xs:annotation>
    <xs:documentation>The File_ObjectType type is intended to characterize generic files.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="cyboxCommon:ObjectPropertiesType">
      <xs:sequence minOccurs="1">
        <xs:element name="File_Name" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The File_Name field specifies the base name of the file (including an extension, if present).</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="File_Path" type="FileObj:FilePathType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The File_Path field specifies the relative or fully-qualified path to the file, not including the path to the device where the file system containing the file resides. Whether the path is relative or fully-qualified can be specified via the 'fully_qualified' attribute of this field. The File_Path field may include the name of the file; if so, it must not conflict with the File_Name field. If not, the File_Path field should contain the path of the directory containing the file, and should end with a terminating path separator("\" or "/").</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Device_Path" type="cyboxCommon:StringObjectPropertyType" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Device_Path field specifies the path to the physical device where the file system containing the file resides.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Full_Path" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Full_Path field specifies the complete path to the file, including the device path. It should contain the contents that would otherwise be in the Device_Path and File_Path fields, and can be used in case the producer is unable or does not wish to separate the Device_Path and File_Path fields. If the Full_Path field is specified along with the File_Path and/or Device_Path fields, it must not conflict with either. The Full_Path field may include the name of the file; if so, it must not conflict with the File_Name field. If not, the File_Path field should contain the path of the directory containing the file, and should end with a terminating path separator("\" or "/").</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="File_Extension" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The File_Extension field specifies the extension of the name of the file. The File_Extension field must not conflict with the ending of the File_Name field. The File_Extension field should not begin with a "." character, but may contain a "." character in the case of a compound file extension, such as "tar.gz".</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Size_In_Bytes" type="cyboxCommon:UnsignedLongObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Size_In_Bytes field specifies the size of the file, in bytes.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" name="Magic_Number" type="cyboxCommon:HexBinaryObjectPropertyType">
          <xs:annotation>
            <xs:documentation>The Magic_Number specifies the particular magic number (typically a hexadecimal constant used to identify a file format) corresponding to the file, if applicable.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element minOccurs="0" name="File_Format" type="cyboxCommon:StringObjectPropertyType">
          <xs:annotation>
            <xs:documentation>The File_Format field specifies the particular file format of the file, most typically specified by a tool such as the UNIX file command.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Hashes" type="cyboxCommon:HashListType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Hashes field specifies any hashes of the file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Digital_Signatures" type="cyboxCommon:DigitalSignaturesType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Digital_Signatures field is optional and captures one or more digital signatures for the file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Modified_Time" type="cyboxCommon:DateTimeObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Modified_Time field specifies the date/time the file was last modified.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Accessed_Time" type="cyboxCommon:DateTimeObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Accessed_Time field specifies the date/time the file was last accessed.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Created_Time" type="cyboxCommon:DateTimeObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Created_Time field specifies the date/time the file was created.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="File_Attributes_List" type="FileObj:FileAttributeType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The File_Attributes_List field specifies the particular special attributes set for the file. Since this is a platform-specific Object property, it is defined here as an abstract type and then implemented in any platform specific derived file objects.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Permissions" type="FileObj:FilePermissionsType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Permissions field specifies that particular permissions that a file may have. Since this is a platform-specific Object property, it is defined here as an abstract type and then implemented in any platform specific derived file objects.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="User_Owner" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The User_Owner field specifies the name of the user that owns the file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Packer_List" type="FileObj:PackerListType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Packer_List field specifies any packers that the file may be packed with. The term 'packer' here refers to packers, as well as things like archivers and installers.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Peak_Entropy" type="cyboxCommon:DoubleObjectPropertyType" minOccurs="0" maxOccurs="1">
          <xs:annotation>
            <xs:documentation>The Peak_Entropy field specifies the calculated peak entropy of the file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Sym_Links" type="FileObj:SymLinksListType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Sym_Links field specifies any symbolic links that may exist for the file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Byte_Runs" type="cyboxCommon:ByteRunsType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Byte_Runs field contains a list of byte runs from the raw file or its storage medium.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Extracted_Features" type="cyboxCommon:ExtractedFeaturesType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>A description of features extracted from this file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Encryption_Algorithm" type="cyboxCommon:CipherType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Encryption_Algorithm field specifies the algorithm used to encrypt the file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Decryption_Key" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Decryption_Key field specifies the key used to decrypt the file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Compression_Method" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Compression_Method field specifies the method used to compress the file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Compression_Version" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Compression_Version field specifies the version of the compression method used to compress the file.</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Compression_Comment" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
          <xs:annotation>
            <xs:documentation>The Compression_Comment field specifies the comment string associated with the compressed file.</xs:documentation>
          </xs:annotation>
        </xs:element>
      </xs:sequence>
      <xs:attribute name="is_packed" type="xs:boolean">
        <xs:annotation>
          <xs:documentation>The is_packed field is used to indicate whether the file is packed or not.</xs:documentation>
        </xs:annotation>
      </xs:attribute>
      <xs:attribute name="is_masqueraded" type="xs:boolean">
        <xs:annotation>
          <xs:documentation>The is_masqueraded field specifies whether the file is masqueraded as another type of file; e.g., a PDF file that has had its extension changed to TXT to masquerade itself as a text file.</xs:documentation>
        </xs:annotation>
      </xs:attribute>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type FileObj:FilePathType
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The FilePathType type specifies the path to the file, not including the device. Whether the path is relative or fully-qualified can be specified via the 'fully_qualified' attribute.
Diagram
Diagram File_Object_xsd.tmp#FilePathType_fully_qualified
Type extension of StringObjectPropertyType
Type hierarchy
Used by
Source

<xs:complexType name="FilePathType">
  <xs:annotation>
    <xs:documentation>The FilePathType type specifies the path to the file, not including the device. Whether the path is relative or fully-qualified can be specified via the 'fully_qualified' attribute.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="cyboxCommon:StringObjectPropertyType">
      <xs:attribute name="fully_qualified" type="xs:boolean">
        <xs:annotation>
          <xs:documentation>The fully_qualified field specifies whether the path is fully qualified.</xs:documentation>
        </xs:annotation>
      </xs:attribute>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type FileObj:FileAttributeType
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The FileAttributeType type specifies attribute(s) of a file. Since this Object property(ies) is platform-specific, it is defined here as an abstract type.
Diagram
Diagram
Used by
Source

<xs:complexType name="FileAttributeType" abstract="true">
  <xs:annotation>
    <xs:documentation>The FileAttributeType type specifies attribute(s) of a file. Since this Object property(ies) is platform-specific, it is defined here as an abstract type.</xs:documentation>
  </xs:annotation>
</xs:complexType>
Complex Type FileObj:FilePermissionsType
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The FilePermissionsType type specifies a permission of a file. Since this is a platform-specific Object property, it is defined here as an abstract type and then implemented in any platform specific derived file objects.
Diagram
Diagram
Used by
Source

<xs:complexType name="FilePermissionsType" abstract="true">
  <xs:annotation>
    <xs:documentation>The FilePermissionsType type specifies a permission of a file. Since this is a platform-specific Object property, it is defined here as an abstract type and then implemented in any platform specific derived file objects.</xs:documentation>
  </xs:annotation>
</xs:complexType>
Complex Type FileObj:PackerListType
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The PackerListType type specifies a list of file packers.
Diagram
Diagram File_Object_xsd.tmp#PackerListType_Packer
Used by
Children FileObj:Packer
Source

<xs:complexType name="PackerListType">
  <xs:annotation>
    <xs:documentation>The PackerListType type specifies a list of file packers.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Packer" type="FileObj:PackerType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>The Packer field specifies a single file packer.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type FileObj:PackerType
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The PackerType specifies the fields that characterize a particular file packer, such as name and version.
Diagram
Diagram File_Object_xsd.tmp#PackerType_Name File_Object_xsd.tmp#PackerType_Version File_Object_xsd.tmp#PackerType_Entry_Point File_Object_xsd.tmp#PackerType_Signature File_Object_xsd.tmp#PackerType_Type File_Object_xsd.tmp#PackerType_Detected_Entrypoint_Signatures File_Object_xsd.tmp#PackerType_EP_Jump_Codes
Used by
Children FileObj:Detected_Entrypoint_Signatures, FileObj:EP_Jump_Codes, FileObj:Entry_Point, FileObj:Name, FileObj:Signature, FileObj:Type, FileObj:Version
Source

<xs:complexType name="PackerType">
  <xs:annotation>
    <xs:documentation>The PackerType specifies the fields that characterize a particular file packer, such as name and version.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Name" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The Name field specifies the name of the packer.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Version" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The Version field specifies the version of the packer.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element minOccurs="0" name="Entry_Point" type="cyboxCommon:HexBinaryObjectPropertyType">
      <xs:annotation>
        <xs:documentation>The Entry_Point field specifies the entry point address of the packer, if applicable.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Signature" type="cyboxCommon:StringObjectPropertyType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The Signature field specifies the matching signature detected for the packer, if applicable.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="Type" type="FileObj:PackerClassType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The Type field specifies the type of packer being characterized.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="Detected_Entrypoint_Signatures" type="FileObj:EntryPointSignatureListType">
      <xs:annotation>
        <xs:documentation>The Detected_Entrypoint_Signatures field specifies the entrypoint signatures that were detected for the packer.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="EP_Jump_Codes" type="FileObj:EPJumpCodeType">
      <xs:annotation>
        <xs:documentation>The EP_Jump_Codes field characterizes the entry point jump codes of the packer.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type FileObj:PackerClassType
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

PackerCassType specifies packer classes, via a union of the PackerTypeEnum type and the atomic xs:string type. Its base type is the CybOX Core BaseObjectPropertyType, for permitting complex (i.e. regular-expression based) specifications.
Diagram
Diagram File_Object_xsd.tmp#PackerClassType_datatype
Type restriction of BaseObjectPropertyType
Type hierarchy
Used by
Source

<xs:complexType name="PackerClassType">
  <xs:annotation>
    <xs:documentation>PackerCassType specifies packer classes, via a union of the PackerTypeEnum type and the atomic xs:string type. Its base type is the CybOX Core BaseObjectPropertyType, for permitting complex (i.e. regular-expression based) specifications.</xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="cyboxCommon:BaseObjectPropertyType">
      <xs:simpleType>
        <xs:union memberTypes="FileObj:PackerClassEnum xs:string"/>
      </xs:simpleType>
      <xs:attribute name="datatype" type="cyboxCommon:DatatypeEnum" fixed="string">
        <xs:annotation>
          <xs:documentation>This field is optional and specifies the expected type for the value of the specified field.</xs:documentation>
        </xs:annotation>
      </xs:attribute>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type FileObj:EntryPointSignatureListType
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

Species a list of entry point signatures for a packer.
Diagram
Diagram File_Object_xsd.tmp#EntryPointSignatureListType_Entry_Point_Signature
Used by
Children FileObj:Entry_Point_Signature
Source

<xs:complexType name="EntryPointSignatureListType">
  <xs:annotation>
    <xs:documentation>Species a list of entry point signatures for a packer.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element maxOccurs="unbounded" name="Entry_Point_Signature" type="FileObj:EntryPointSignatureType">
      <xs:annotation>
        <xs:documentation>Specifies a single field in a list of entry point signatures.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type FileObj:EntryPointSignatureType
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

Specifies an entry point signature for a packer.
Diagram
Diagram File_Object_xsd.tmp#EntryPointSignatureType_Name File_Object_xsd.tmp#EntryPointSignatureType_Type
Used by
Children FileObj:Name, FileObj:Type
Source

<xs:complexType name="EntryPointSignatureType">
  <xs:annotation>
    <xs:documentation>Specifies an entry point signature for a packer.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element maxOccurs="1" minOccurs="0" name="Name" type="cyboxCommon:StringObjectPropertyType">
      <xs:annotation>
        <xs:documentation>Specifies the signature name.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="Type" type="FileObj:DetectedTypeEnum">
      <xs:annotation>
        <xs:documentation>Specifies the type of entry point detected (e.g., packer, compiled file).</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Simple Type FileObj:DetectedTypeEnum
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The DetectedTypeEnum is an enumeration of entry point signature detection types.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration None
Specifies a type other than those listed.
enumeration Compiler
Specifies an executable that acts as a compiler.
enumeration Packer
Specifies an executable that acts as a packer.
enumeration Installer
Specifies an executable that acts as an installer.
Used by
Source

<xs:simpleType name="DetectedTypeEnum">
  <xs:annotation>
    <xs:documentation>The DetectedTypeEnum is an enumeration of entry point signature detection types.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="None">
      <xs:annotation>
        <xs:documentation>Specifies a type other than those listed.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Compiler">
      <xs:annotation>
        <xs:documentation>Specifies an executable that acts as a compiler.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Packer">
      <xs:annotation>
        <xs:documentation>Specifies an executable that acts as a packer.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Installer">
      <xs:annotation>
        <xs:documentation>Specifies an executable that acts as an installer.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Complex Type FileObj:EPJumpCodeType
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

Specifies an entry-point jump code used by a packer.
Diagram
Diagram File_Object_xsd.tmp#EPJumpCodeType_Depth File_Object_xsd.tmp#EPJumpCodeType_Opcodes
Used by
Children FileObj:Depth, FileObj:Opcodes
Source

<xs:complexType name="EPJumpCodeType">
  <xs:annotation>
    <xs:documentation>Specifies an entry-point jump code used by a packer.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element maxOccurs="1" minOccurs="0" name="Depth" type="cyboxCommon:IntegerObjectPropertyType">
      <xs:annotation>
        <xs:documentation>The frequency that a jump instruction is found to be immediately followed by another jump instruction within the PE(Portable Executable) entry point.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element maxOccurs="1" minOccurs="0" name="Opcodes" type="cyboxCommon:StringObjectPropertyType">
      <xs:annotation>
        <xs:documentation>The hex value of the bytes located at the jump location for a relative jump identified in the PE(Portable Executable) entry point up to 10 bytes or the end of the RVA(Relative Virtual Address) section.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type FileObj:SymLinksListType
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The SymLinksListType specifies a list of symbolic links.
Diagram
Diagram File_Object_xsd.tmp#SymLinksListType_Sym_Link
Used by
Children FileObj:Sym_Link
Source

<xs:complexType name="SymLinksListType">
  <xs:annotation>
    <xs:documentation>The SymLinksListType specifies a list of symbolic links.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="Sym_Link" type="cyboxCommon:StringObjectPropertyType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>The Sym_Link element specifies a single symbolic link.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Simple Type FileObj:PackerClassEnum
Namespace http://cybox.mitre.org/objects#FileObject-2
Annotations

The PackerTypeEnum type is a (non-exhaustive) enumeration of packer classes.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Archiver
Indicates that the packer is an archiver.
enumeration Installer
Indicates that the packer is an installer.
enumeration Self-Extracting Archiver
Indicates that the packer is a self-extracting archiver.
enumeration Crypter
Indicates that the packer is a crypter.
enumeration Packer
Indicates a packer.
enumeration Protector
Indicates that the packer is a protector.
enumeration Bundler
Indicates that the packer is a bundler.
enumeration Other
Indicates a different type of packer from the ones listed.
Source

<xs:simpleType name="PackerClassEnum">
  <xs:annotation>
    <xs:documentation>The PackerTypeEnum type is a (non-exhaustive) enumeration of packer classes.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Archiver">
      <xs:annotation>
        <xs:documentation>Indicates that the packer is an archiver.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Installer">
      <xs:annotation>
        <xs:documentation>Indicates that the packer is an installer.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Self-Extracting Archiver">
      <xs:annotation>
        <xs:documentation>Indicates that the packer is a self-extracting archiver.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Crypter">
      <xs:annotation>
        <xs:documentation>Indicates that the packer is a crypter.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Packer">
      <xs:annotation>
        <xs:documentation>Indicates a packer.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Protector">
      <xs:annotation>
        <xs:documentation>Indicates that the packer is a protector.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Bundler">
      <xs:annotation>
        <xs:documentation>Indicates that the packer is a bundler.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="Other">
      <xs:annotation>
        <xs:documentation>Indicates a different type of packer from the ones listed.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Attribute FileObj:FilePathType / @fully_qualified
Namespace No namespace
Annotations

The fully_qualified field specifies whether the path is fully qualified.
Type xs:boolean
Used by
Complex Type FileObj:FilePathType
Source

<xs:attribute name="fully_qualified" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>The fully_qualified field specifies whether the path is fully qualified.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute FileObj:PackerClassType / @datatype
Namespace No namespace
Annotations

This field is optional and specifies the expected type for the value of the specified field.
Type DatatypeEnum
Used by
Source

<xs:attribute name="datatype" type="cyboxCommon:DatatypeEnum" fixed="string">
  <xs:annotation>
    <xs:documentation>This field is optional and specifies the expected type for the value of the specified field.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute FileObj:FileObjectType / @is_packed
Namespace No namespace
Annotations

The is_packed field is used to indicate whether the file is packed or not.
Type xs:boolean
Used by
Complex Type FileObj:FileObjectType
Source

<xs:attribute name="is_packed" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>The is_packed field is used to indicate whether the file is packed or not.</xs:documentation>
  </xs:annotation>
</xs:attribute>
Attribute FileObj:FileObjectType / @is_masqueraded
Namespace No namespace
Annotations

The is_masqueraded field specifies whether the file is masqueraded as another type of file; e.g., a PDF file that has had its extension changed to TXT to masquerade itself as a text file.
Type xs:boolean
Used by
Complex Type FileObj:FileObjectType
Source

<xs:attribute name="is_masqueraded" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>The is_masqueraded field specifies whether the file is masqueraded as another type of file; e.g., a PDF file that has had its extension changed to TXT to masquerade itself as a text file.</xs:documentation>
  </xs:annotation>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
